Vehicles Parameters

Dimensions

Overall dimensions(mm)

4850×1810×2560

Cabinet size(mm)

2700x1600x1800

GVW(kg)

1990

Wheelbase/mm

2760

Approach/Departure Angle/°

37/13

Front/Rear Overhang/mm

590/1500

Cab

Cab Capacity

Single row, left steering wheel

Air Conditioner

No

Chassis

Chassis model

EQ1021TFJ53

Brand

Dongfeng

Driven Mode

4x2, LHD

Emission standard

Euro IV

Front/ Rear  track base(mm)

1310/1310

Tyre

165/70R14

Fuel Type

gasoline

Gear Box

5 forwards 1 backward

Max Speed/ km/h

110

Engine

Engine model

BG10-07

Horsepower/HP

70

Displacement/ml

1012

Max Torque

108 N·m

Speed at Max Torque

3000 rpm

Standard Equipment

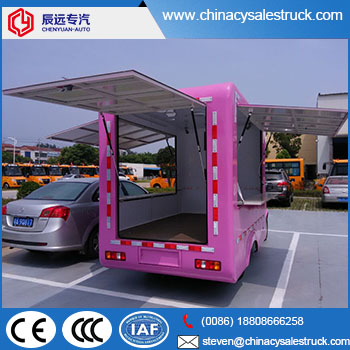

The compartments is made of cold-rolled steel sheet or glass fiber reinforced plastic material , the compartments with heat insulation function , and the floor made of skidproof , waterproof and wear-resistant aluminum checkered plate ; The top of the compartments is closed and can not open , but the left and right side and the back can be expanded and there is vending bar on both left and right side. The internal compartments is installed with LED vending floodlights or two columns spotlight (5pcs / column), megaphone, master switch, USB interface, large space locker; The outside of the compartments is installed two loudspeakers, 105A battery, 220V external power supply interface , 15m external power supply cord, telescopic truck pedal; truck color (light pink ,brown and light green) and LOGO as per customer demand .

Food truck optional equipments description:

Optional Configuration: Internal compartment equipment can be customised according to user's requirements suchas generator/freezer/cold drink machine/vending bar/cooker etc; The left andright side of the compartment body can be chosed different structure forms ofside panel; The selling window can be also opened on any side of the truck bodyaccording to customer demand, the below board can be unfold to extend the cargoarea in vending operation; The glass sliding window can be also choosed on bothside of the compartment body.The back door of the compartment can choose singleopen door, double flat open door or lift-up door. Both sides and back of the compartment can be optional advertising glass roller light box or LED screen.Truck roof can choose overhead air conditioning,baggage holder,left andright side can be chosed awning,the back side of the truck can be chosedcrawling ladder.

Summary:

· selling snacks,as a fast food cart which you can make and sell fast food

· kitchen cart which you can make food for yourself

· shop which you can sell phone card and phone

· aid post which you can help everyone

· book store which you can sell newspaper , magazine etc

· housing when you have a trip by car or jeep

· repare shop to main for your clients

· empty cart which do it by yourself

1. Q: How long is the warranty period?

   A: All of our trucks have one year warranty or 25000KM since you get the truck.

 2. Q: What’s the main market of yourcompany?

   A: We have customers all over the worldand our main market it Afrian, all the individuals and units are my partnerswho have a demand of china’s high quality automobile industry product.

3.  Q: How much the production capacity and supply capacity of your factory for one year?

 .  A: This depends on your needs. 10 years of spare parts sales experience makes us have a smooth supply channels.

4.  Q: Where is your factory located?

   A:Our company is located in Suizhou City,Hubei Province,the Capital of Special Purpose Vehicle in China.Warmly welcome to our factory.

5.  Q: The reason why you chose our company?

   A: We have the abundant resources supply, professional quality inspection engineers,excellent service team, we will integrate all resources for your needs, let you experience the more cost-effective and more convenient "one-stop" procurement services, effectively reduce the purchasing cost.
